GL New Foldable VTOL With Multi-Spectral Camera For precision agriculture,surveying and Biomedical Material Transport

GL New Foldable VTOL With Multi-Spectral Camera For precision agriculture, ansurveying industries and Biomedical Material Transport

Features:

► The special design provides the aircraft with stable vertical take-off and landing capability.

► Flight time up to 240 minutes (equipped with device within 5kg).
► Easily disassembled, small size and high mobility.
► Short deploying time, normally taking off within 5 minutes.

► Fully autonomous flight; one-click take-off & landing; vertical take-off & landing not restricted by topographic features, can be used for automatic flight generation of GSD and overlap rate required for mapping results, and fixed-point and fixed-range photographing.

Specifications

& VTOL Type:Tilting VTOL

& Wingspan:2.5Meters

& Fuselage:1.5Meters

& MTOW:18Kg

&Payload:5Kg

&Take-off & Landing:VTOL

&Endurance:240mins

&Max.speed:100km/h (Sea Level Pressure)

&Cruise speed:70km/h-90km/h(Sea Level Pressure)

&Flight Height:5000m

&Tracking Accuracy:Horizontal:5cm;Vertical:3cm

&Flight Radius:250Km

&Emergency Protection:Low Battery Protection,GEO Fence,RTL

&Image Format:RAW/JPG+Trigger Position

&Wind Resistance:7Level

&Battery:Lithium 25500 6S 24V

&Autopilot:Autonomous Flight ,VTOL Version

&Datalink:Micohard 1W Digital Radio

&Powertrain:1*1000W brushless power(fixed wing)&4*500w Brushless power(milti-rotor)

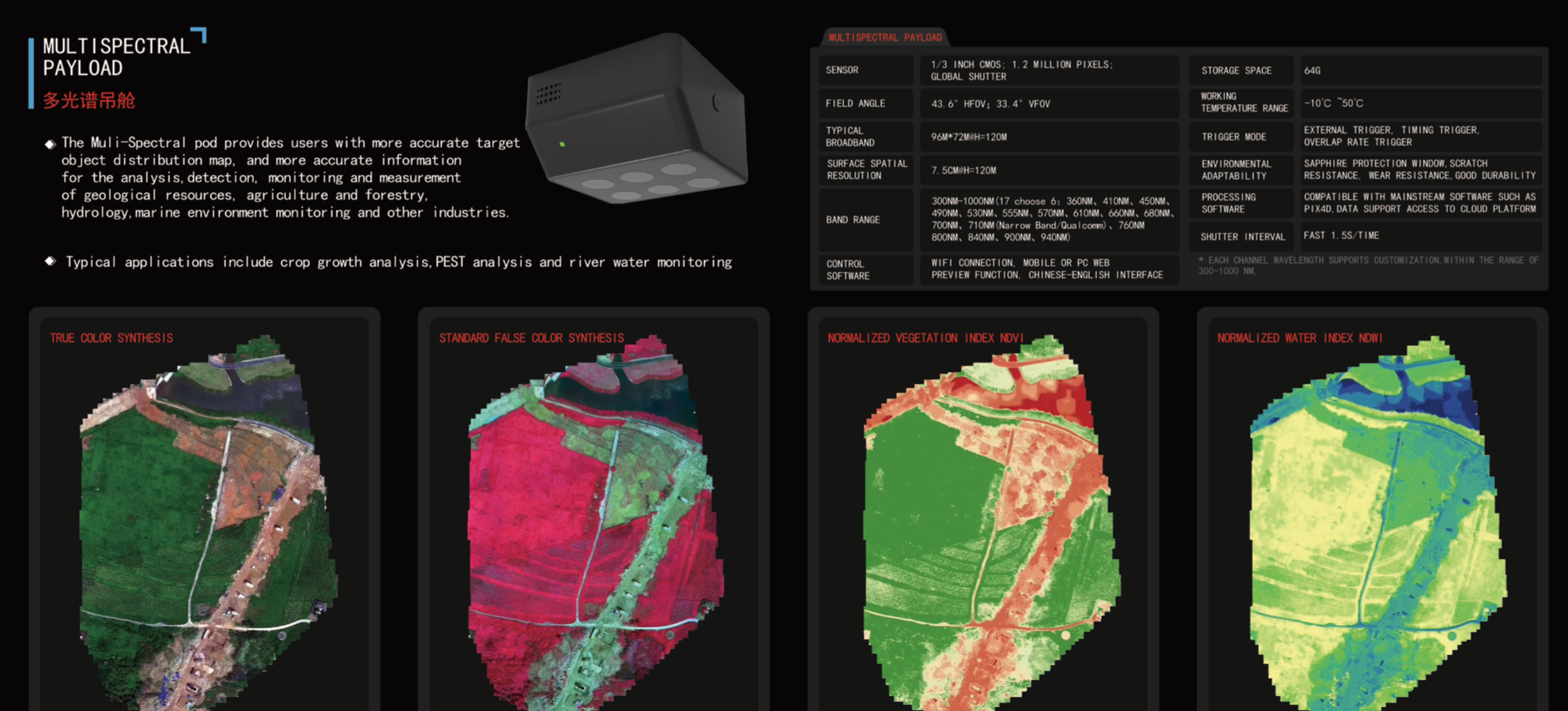

&Camera:Multispectral Camera

&Remote Controller:Futaba-T8fg Optional

&Antenna:7DBI Omnidirectional Antenna

&PPK:Optional 2cm Accuracy

YouTuBe Video Link:

https://youtu.be/1D7-4QbsokQ

https://youtu.be/neqHUEXinWI

https://youtu.be/ACYvcwoEcAc

https://youtu.be/fLkP8DusW3E

https://youtu.be/4tC3XQ-bWUk

https://youtu.be/nLxZw_AZr7o

GL New Foldable VTOL With Multi-Spectral Camera For precision agriculture,surveying and Biomedical Material Transport Images
