Autonomous Obstacle Avoidanc Agricultural Spraying Drone,Waterproof 5 level Resistance 15L Payload with 6 Smart Nozzles

Place of Origin : China

Brand Name : GL

Certification : CE

Model Number : GLF

MOQ : 1

Price : Customized

Packaging Details : Aluminum Hard Case

Delivery Time : 5days

Payment Terms : TT

Supply Ability : 800SETS/WEEK

Protection Level : IP67

Type : Outlet Box

Weight : 16kg

Battery capacity : 16000mAh

Flying time : 25mins

External Size : 1650*1650*720mm

Max Take Off Weight : 45Kg

Radar : Autonomous Obstacle Avoidance

Contact Now

Autonomous Agricultural Spraying Drone,Waterproof and Weather 5 level Resistance 15L Payload with 6 Smart Nozzles Autonomous Obstacle Avoidance

Specifications Details:

Class	Professional Industrial Class
Take Off Weight	Standard: 35KG
	MTW: 45KG
Hover Accuracy	Hover Time: 25min(16000MA,TW 20KG)
	11min(16000ma TW 35KG)
	Tested by Sea Level;Wind Speed <3m/s
Flight Speed	Max Working Flight Speed:8m/s
	Max Flight Speed:12m/s
Flight Height	ASL 3000m
Wheelbase	1650mm
Recharger	12S Dual 20A
	Recharging Voltage;44V
	Rated Power:1000W
Battery	Power Battery:12S16000ma
Power	Flight
	Rated Power:7920W
	Hover Power :3960W
	RC
	Working Power:9W
Body Parameter
Dimension	Arm length:580mm
	External Size:16501650720mm,(Arms Spread without Propellers)
		680680720mm(Fold Size)
Weight	Complete Body:16KG (Without Battery)
Ambient	Flight Advised Temperature:0C-40C
	RC Working Temperature:-10C-40C
	Storage Temp:Less than 3months,-20C—45C
	More than 3months:22C—28C
	Recharging Temp:0C—40C
Spray System	Spray System
	Tank Capacity:15L
	Working Payload:15KG
	Nozzle:110Angle 001 Fan Nozzle,Flow:0.379L/min
	Advise:Nozzle110Angle 015 Fan Nozzle Flow:0.525L/min
	Numbers:6
	Max Spray Rate:Each110Angle 001 Fan Nozzle 0.43L/min
	Atomizing Particle Size:110Angle001 Fan Nozzle:130-250um
Dynamical System	Motor
	Stator Size:83*20mm
	KV:120rpm/V
	Pull:11..8KG/rotor
	Rated Power :1320W
	Weight:780g
	ESC
	Max Working Current:(Continous )100A
	Working Voltage:50..4V
	Compatible Signal Frequency:621HZ
	Propeller:30inch
	Material:Carbon Fiber
	Dimension:30*10.5inch
	Weight:110g

Autonomous Obstacle Avoidanc Agricultural Spraying Drone,Waterproof 5 level Resistance 15L Payload with 6 Smart Nozzles

Video Link:

https://youtu.be/AvFWzTJIDQU

https://youtu.be/k_d2uh4ROIw (Flight In South America)

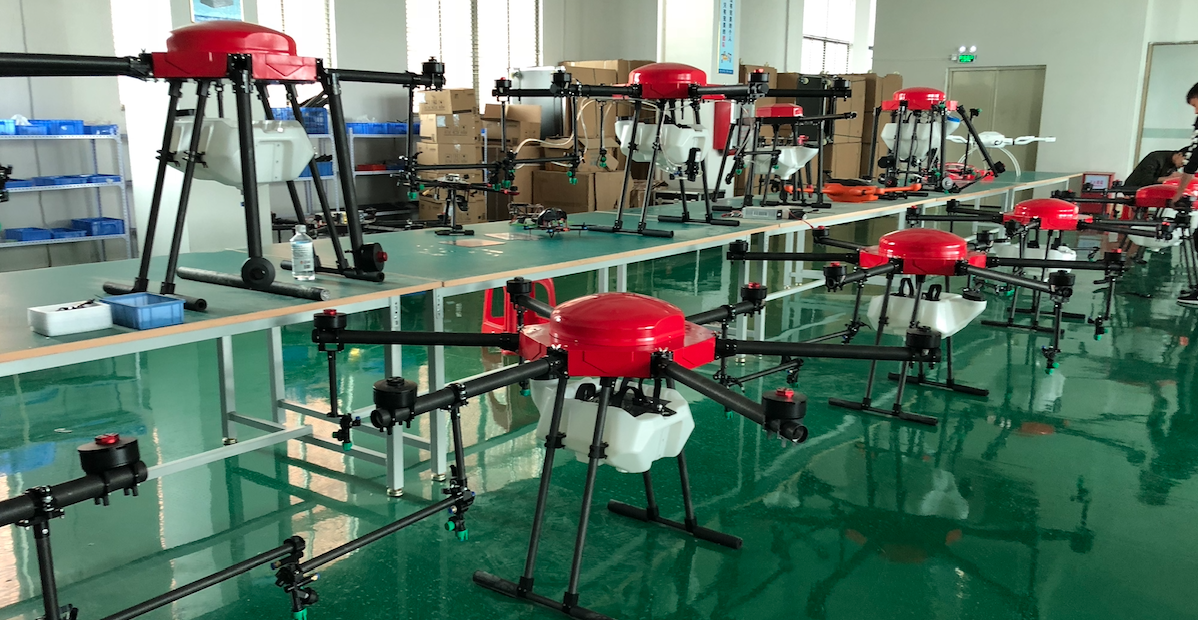

Autonomous Obstacle Avoidanc Agricultural Spraying Drone,Waterproof 5 level Resistance 15L Payload with 6 Smart Nozzles Images
