Tethered Drone Platform with Tethered Power Supply and an Integrated Ground Power Box Continuously Flight 3Kg Payload

Tethered Drone Platform with Tethered Power Supply and An Integrated Ground Power Box Continuously Flight 3Kg Payload

Tethered Drone Platform Parameters:

Wheelbase:720mm Folding Method: Unfoldable

Body Weight:3950g Onboard Backup Battery: Lithium Battery 5300mAh

Payload:3.0g

Ground End Parameters:

Cable Length:100m Size:350*250*190mm

Line Retracting Mode: Automatic+Manual Shell Material: Aviation Aluminum Alloy

Output Power:2500W Working Temperature:-25℃-50℃

Body Weight:8000g Rated Input Voltage:220V AC

UE Generator Adapter:4000g Output Voltage:380V-420V DC

Battery Adapter:2000g

Onboard Power Supply Parameters:

Output Overcurrent Protection :380V

Output Short Circuit Protection:23V±1.5V

Efficiency:>95%

Protection Performance Requirements:

Input low pressure/high pressure .Output low pressure/High Pressure

Overcurrent ,Surge,Over temperature protection

Level IP53(Customized Optional)

Flight Video Link:

https://youtu.be/F4482m8B74E

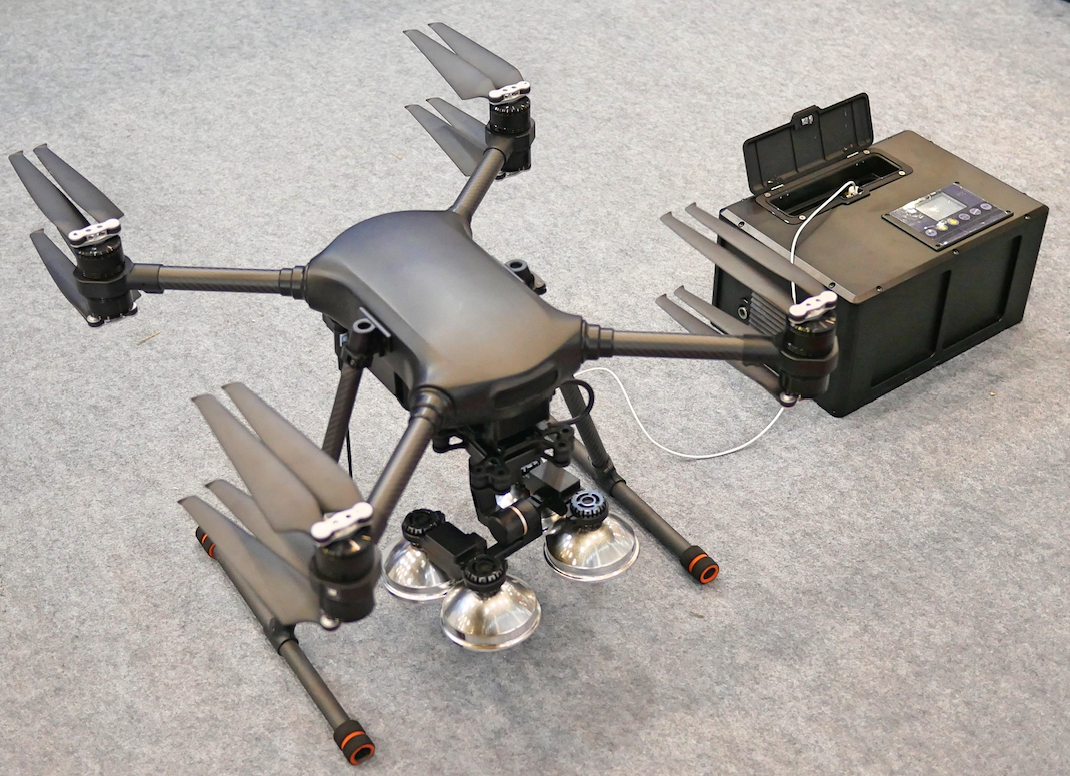

Tethered Drone Platform with Tethered Power Supply and an Integrated Ground Power Box Continuously Flight 3Kg Payload Images
